In the high-precision world of insert injection molding, the interface between a rigid metal component and molten plastic is the most critical failure point for flash. Engineers utilizing injection molding threaded inserts must adhere to strict shut-off tolerances to ensure the final product meets the aesthetic and functional standards required by the medical and automotive sectors. Unlike standard molding, where steel meets steel, threaded inserts for plastic injection molding introduce a variable metal substrate that can slightly deform or shift under pressure. To prevent flash, the gap between the mold core and the insert must be controlled within microns, specifically tailored to the resin’s viscosity.
Engineering Zero-Flash Interfaces: Tolerances and Crush Rib Geometry
Achieving a flash-free seal in injection mold inserts requires a dual strategy: defining the exact shut-off gap based on resin fluidity and engineering interference fits that physically block polymer flow.
Defining Ideal Shut-Off Tolerances for Different Resin Viscosities
The “one-size-fits-all” approach to tolerance leads to defects. The ideal shut-off gap—the clearance between the mold steel and the insert—is dictated by the flow rate of the polymer.
Standard Viscosity Materials (ABS, PC, PP): For amorphous materials like ABS or Polycarbonate, a shut-off gap of 0.01mm to 0.02mm is typically sufficient. These materials have a higher viscosity and are less likely to seep into microscopic voids immediately upon injection.
High-Flow, Low-Viscosity Resins (PA66, LCP, POM): Crystalline polymers used in electronics, such as Liquid Crystal Polymer (LCP) or Nylon 66, are akin to water when molten. For these, insert molding manufacturers must enforce sub-5 micron fits. A gap exceeding 0.005mm can result in flash, necessitating a “zero-match” requirement where the mold steel and insert face ostensibly touch without crushing the thread.
Engineering Crush Ribs for Physical Sealing
Relying solely on hole diameter tolerances is risky due to the thermal expansion mismatch between brass inserts for plastic injection molding and the steel mold. Crush ribs—small, intentional interference features—are the industry standard solution.
Interference Design: Three to four ribs should be designed on the shut-off surface of the insert or the receiving mold core. A precise overlap of 0.01mm to 0.03mm ensures that when the mold closes, the steel “crushes” slightly against the softer brass, creating a hermetic physical seal.
Tonnage Calculation: The clamping force must be sufficient to compress these ribs without deforming the insert’s internal threads. Engineers must balance the rib geometry; if the ribs are too large (>0.05mm), the insert may deform, causing thread rejection. If too small, the injection pressure (often exceeding 10,000 psi) will push the plastic past the seal.
Advanced Manufacturing Protocols and Livepoint Tooling Capabilities
The difference between a prototype and a production-grade insert molding manufacturer lies in the ability to consistently replicate micron-level tolerances across thousands of cycles using advanced fabrication and process control.
Manufacturing Precision Injection Mold Inserts to Eliminate Gaps
To achieve the sub-5 micron tolerances required for materials like LCP, traditional machining is often insufficient.
Mirror Spark EDM: Advanced cores are fabricated using Mirror Spark Electrical Discharge Machining (EDM), which creates a mating surface so smooth it acts as a fluid seal.

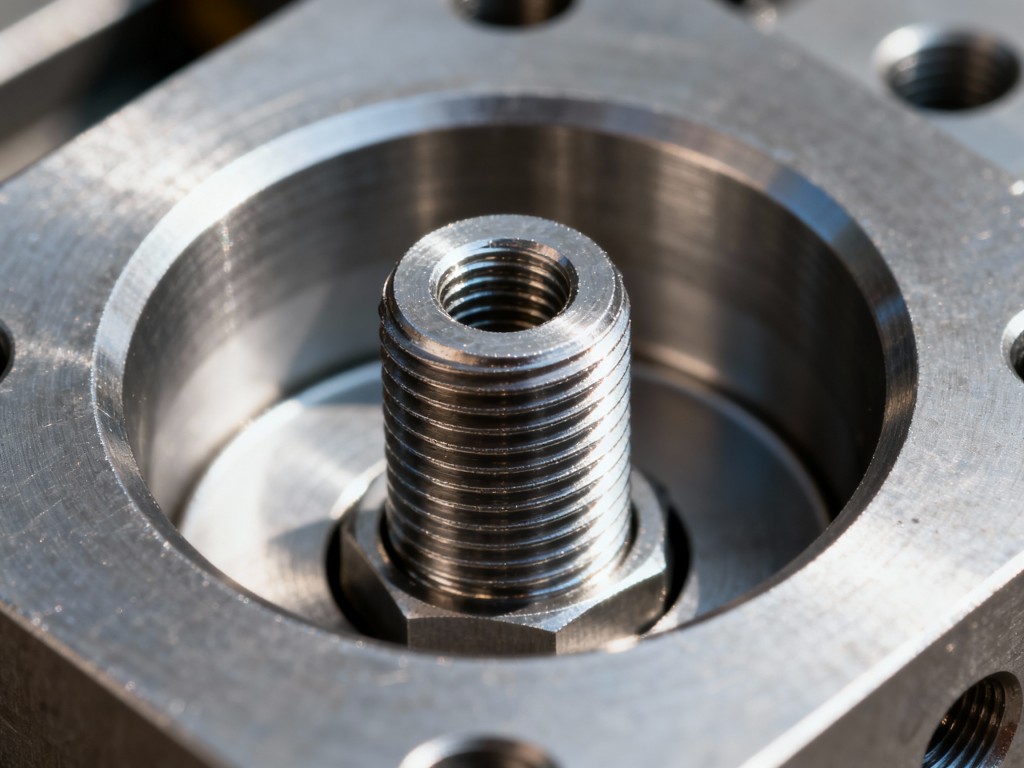

Concentricity and Positioning: The core pin holding the threaded insert must hold a position tolerance of +/- 0.005mm. Any deviation causes the insert to tilt, creating a gap on one side and crushing the mold on the other .
Blue-Ink Verification: Top-tier mold makers conduct blue-ink fitting tests. A thin layer of blue ink is applied to the mating surfaces; if the ink transfers evenly with no voids, the shut-off is verified. This detects micro-gaps invisible to the naked eye.
Livepoint Tooling: Precision Insert Molding Services

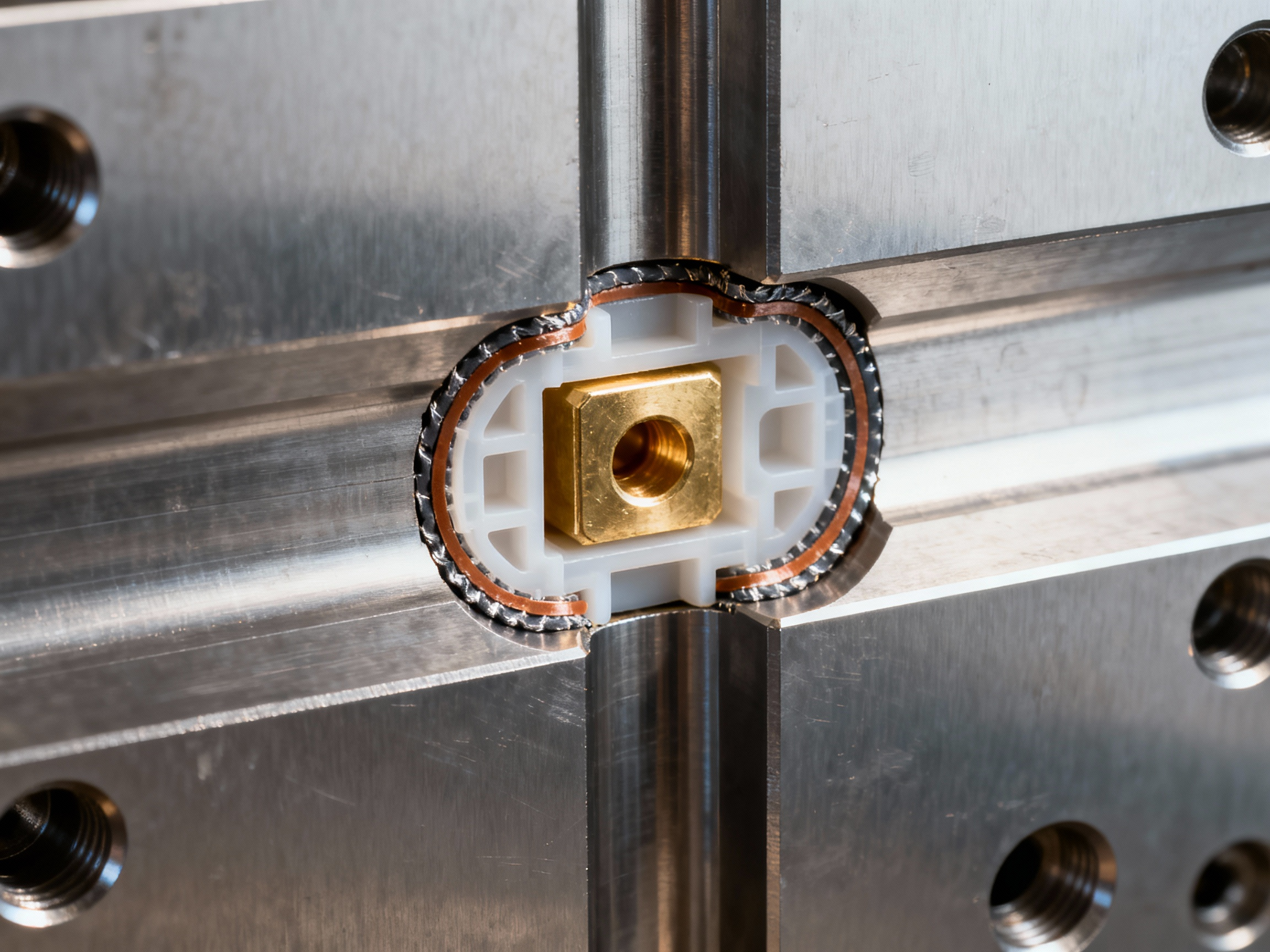

Livepoint Tooling specializes in complex insert injection molding, offering a robust solution for projects requiring tight shut-off tolerances and flash-free aesthetics. Their capabilities address the core challenges of integrating brass inserts for plastic injection molding into high-performance thermoplastics.
Optimized Process Control: Livepoint utilizes multi-stage injection velocity profiles. By slowing the melt front as it contacts the insert, they reduce the dynamic pressure spike that typically forces plastic into the shut-off gap.
Dimensional Stability: Working with specialized supply chains, Livepoint ensures the metal inserts themselves meet strict height and diameter tolerances . A consistent insert is the prerequisite for a consistent seal.
Material Versatility: Whether the project demands the high heat resistance of PEEK or the cost-effectiveness of PP, their tooling strategies are adapted to the specific viscosity and thermal properties of the resin.
For engineers seeking to move from insert molding vs injection molding theory to production reality, Livepoint Tooling provides the expertise needed to navigate these tolerance challenges. Their focus on scientific molding principles ensures that every threaded insert is securely encapsulated without the costly burden of post-process deflashing.
