Continuous manufacturing lines, automated logistics centers, and healthcare facilities cannot tolerate power interruptions. Microgrids serving critical loads rely on a high-speed static changeover switch. This device seamlessly routes power between utility grids, solar-plus-storage, and backup generators without disrupting sensitive downstream equipment.
Voltage sags or supply interruptions lasting just a fraction of an AC cycle trip programmable logic controllers (PLCs), reset digital equipment, and halt automated assembly operations. Conventional mechanical transfer switches operate far too slowly to protect modern industrial facilities from voltage transients and power dropouts.
The Engineering Behind Sub-Cycle Power Transitions
To fully appreciate the necessity of high-speed switching, one must examine the physical limitations of mechanical automatic transfer switches. Traditional mechanical units rely on physical contactors driven by solenoids or motorized assemblies, resulting in transfer latencies ranging from 50 to 100 ms. During this extended window of disconnection, sensitive electronics lose power, and active electric motors generate inductive back-EMF, causing severe phase mismatching upon reconnection.
Solid-state switching relies entirely on silicon-controlled rectifiers connected in anti-parallel configurations. Because solid-state switching devices do not rely on mechanically moving contacts, these electronic switches can transition electrical currents in as little as 2 to 4 ms, which represents less than 1/4 of a standard 60 Hz alternating current cycle. This rapid response occurs so quickly that downstream servers, programmable logic controllers, and variable frequency drives remain fully powered and operational, completely isolated from upstream voltage sags.
Key Technical Benchmarks Provided by Premium Static Transfer Switch Manufacturers
Selecting hardware for high-capacity industrial projects requires careful evaluation of control logic and diagnostics. Leading static transfer switch manufacturers utilize high-speed digital signal processing to track voltage, frequency, and phase alignment across incoming power sources in real time.
If the primary power source experiences a deviation of more than 10% from nominal values, the system must execute an out-of-phase transfer block or perform an instantaneous in-phase transition depending on the dynamic phase angle difference between the sources. This prevents catastrophic inrush currents that can damage sensitive transformers or trip downstream circuit breakers.
The internal layout should feature physical barriers separating the control logic from high-voltage busbars, minimizing electromagnetic interference and ensuring safe, localized maintenance procedures during continuous operation.
For mission-critical environments, static transfer switches must operate reliably under continuous electrical stress and changing load conditions. Manufacturing facilities, data centers, and healthcare infrastructure depend on stable power transitions to avoid production losses, equipment damage, and service interruptions. Evaluating switching speed, fault response capability, and system communication functions during the initial design stage helps operators build more resilient microgrid architectures and achieve higher levels of operational continuity.
Redundant Power Configurations and Intelligent Fault Management

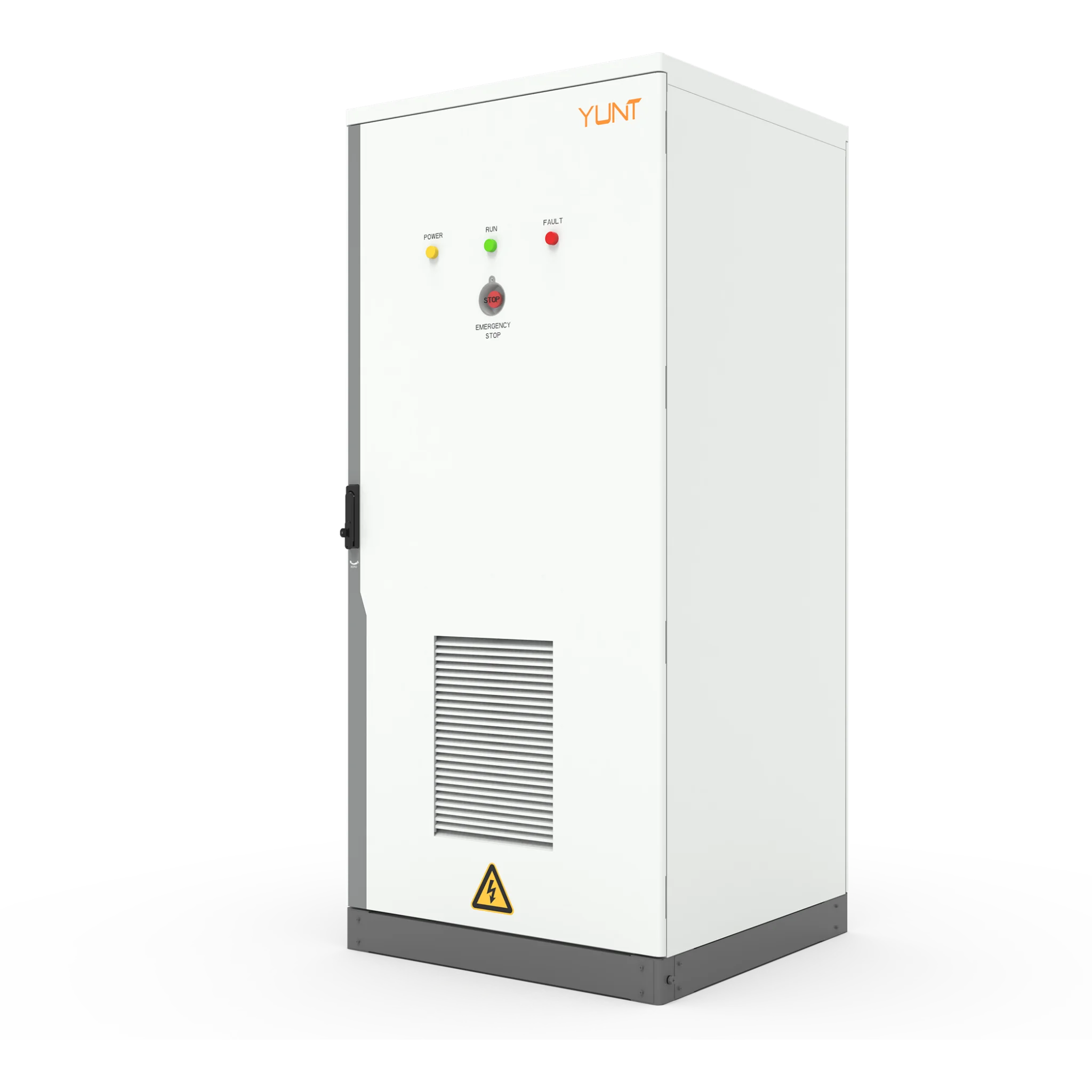

For critical installations, physical and logical redundancy represents the ultimate defense against unexpected outages. Top-tier switching cabinets incorporate dual independent power supplies to run the control boards, ensuring that even if one internal power supply unit fails, the diagnostic and transfer systems remain active.
In the event of an internal thyristor short-circuit or thermal overload, the system should feature a built-in mechanical maintenance bypass switch. This bypass allows technicians to isolate and service the electronic switching modules without disconnecting the downstream load from power, eliminating the need for scheduled facility blackouts.
Integrating these devices into local supervisory control and data acquisition networks over industrial protocols like Modbus TCP/IP allows facilities managers to monitor operational statistics, temperature profiles, and transition histories in real time from a centralized operations center.
These monitoring capabilities also support preventive maintenance strategies by providing historical operating data for performance analysis. For large-scale industrial facilities, this data-driven approach helps identify potential issues earlier, optimize maintenance schedules, and improve the long-term availability of critical power infrastructure.
Certified Grid-Forming Technologies and Operational Excellence
Implementing these sophisticated power solutions demands a supplier with robust technical qualifications and verified engineering capabilities. As a leading specialized developer in this field, YUNT leverages a core team with over 16 years of experience in power electronics development, focusing heavily on modular microgrid architectures and advanced switching systems.
Their R&D division constitutes 56% of their total workforce, with over 90% of these engineers holding master’s degrees or higher. This deep technical focus is validated by 48 domestic patents and stringent international compliance certifications across 18 countries including CE, TÜV, VDE, and SGS.
For system integrators, utilizing these pre-certified, highly modular cabinets simplifies global regulatory compliance, reduces on-site integration timelines, and guarantees that critical switching operations conform to the highest safety and performance standards in the power industry.
Securing Continuous Operational Uptime in Distributed Energy Networks
The transition toward decentralized energy networks requires reliable power distribution solutions capable of responding to rapid changes in power conditions. Certified static transfer systems provide critical protection for microgrids by ensuring continuous operation, improving resilience, and supporting the stable integration of renewable energy resources.
